Product Summary

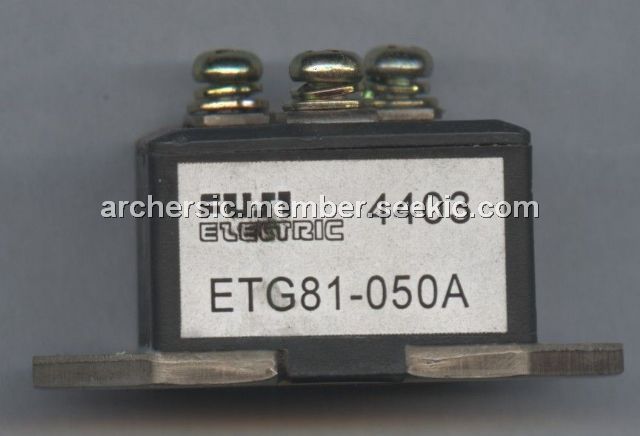

The ETG81-050A is a power transistor module. It is suitable for power switching, AC motor controls, DC motor controls and uninterruptible power supply.
Parametrics
ETG81-050A absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 6V; (5)IC: 30A; (6)ICP: 60A; (7)Tj: 150℃; (8)Tstg: -40 to 125℃.
Features
ETG81-050A features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

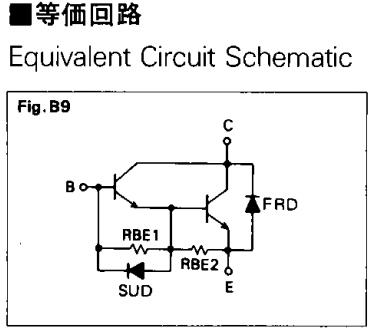

Diagrams
