Product Summary

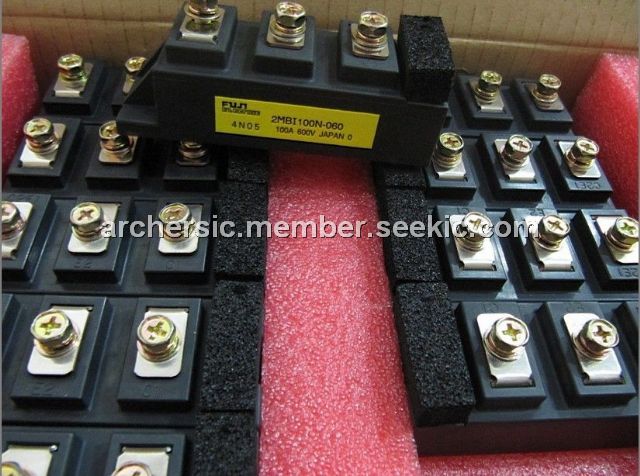

The 2MBI100N-060 is an IGBT module.

Parametrics

2MBI100N-060 absolute maximum ratings: (1)Max. power dissipation PC: 400W; (2)Operating temperature Tj: +150℃; (3)Storage temperature Tstg: -40 to +125℃; (4)Isolation voltage Vis: AC 2500 (1min.)V; (5)Screw torque: 3.5N·m; (6)Collector-Emitter voltage VCES: 600V; (7)Gate-Emitter voltaga VGES: ±20V.

Features

2MBI100N-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

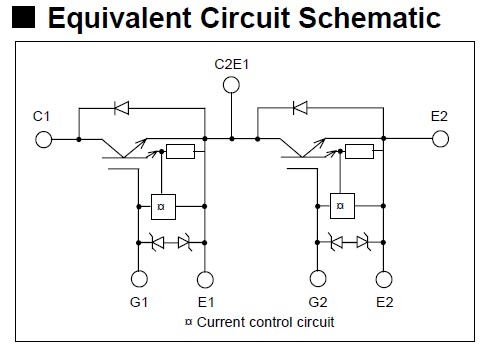

2MBI100N-060 equivalent circuit schematic
