Product Summary

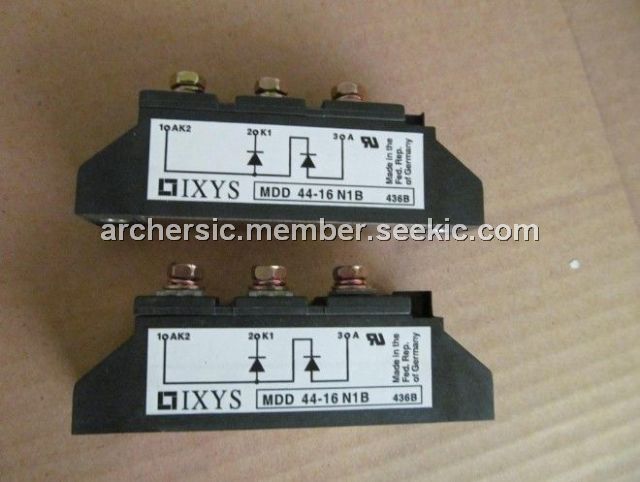

The MDD44-16N1B is a diode module which is supplied for DC power equipment, DC supply for PWM inverter, Battery DC power and so on.
Parametrics
MDD44-16N1B absolute maximum ratings: (1)IFRMS, TVJ= TVJM: 100 A; (2)IFAVM, TC = 105℃, 180 °sine: 64 A; (3)IFSM, TVJ= 45℃ ; t = 10 ms (50 Hz), sine: 1150 A; (4)TVJ: -40 to +150℃; (5)TVJM: 150℃; (6)Tstg: -40 to +125℃ ; (7)VISOL: 50/60 Hz, RMS t = 1 min: 3000 V; (8)VISOL,I ISOL≤1 mA, t = 1 s: 3600 V.
Features
MDD44-16N1B features: (1)International standard package JEDEC TO-240 AA; (2)Direct copper bonded Al2O3-ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MDD44-16N1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MDD44-08N1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 800V |
Data Sheet |
Negotiable |
|
||||
|
MDD44-12N1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
MDD44-14N1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1400V |
Data Sheet |
Negotiable |
|
||||
|
MDD44-16N1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
|
MDD44-18N1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1800V |
Data Sheet |
Negotiable |
|
||||
