Product Summary

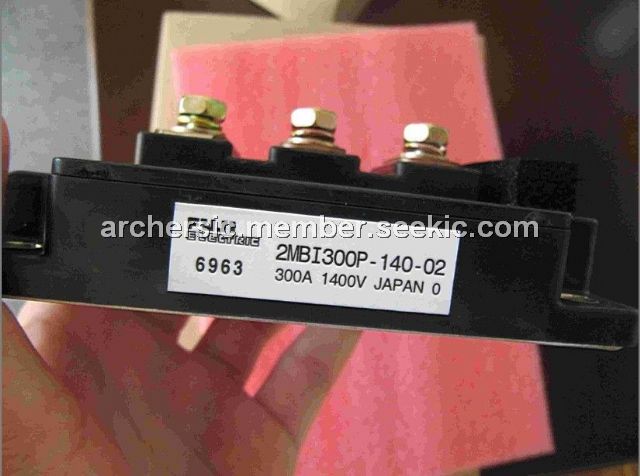

The 2MBI300P-140 is an insulated gate bipolar transistor. The applications of the 2MBI300P-140 include high power switching, A.C. motor controls, D.C. motor controls, uninterruptible power supply.
Parametrics
2MBI300P-140 absolute maximum ratings: (1)Collector-emitter voltage VCES: 1400V; (2)Gate-emitter voltaga, VGES: ±20V; (3)Collector current: Continuous: Tc= 25℃, IC: 400A; Tc= 80℃, IC: 300A; 1ms: Tc= 25℃, IC pulse: 800A; Tc= 80℃, IC pulse: 600A; -IC: 300A; 1ms, -IC pulse: 600A; (4)Max. power dissipation, PC: 2500W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Isolation voltage, AC 1min, Vis: 2500V; (8)Screw torque: mounting: 3.5Nm; terminals: 4.5Nm.
Features
2MBI300P-140 features: (1)Square SC SOA at 10 x IC; (2)Simplified parallel connection; (3)Narrow distribution of characteristics; (4)High short circuit withstand-capability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300P-140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
