Product Summary

The SKIIP28ANB16V2 is a 3-phase bridge rectifier. It is suitable for input bridege for inverter up to 39kVA.

Parametrics

SKIIP28ANB16V2 absolute maximum ratings: (1)VCES: 1200V; (2)IC: 118AICRM: 210A; (3)VGES: ±20V; (4)Tj: -40 to 150℃.

Features

SKIIP28ANB16V2 featurs: (1)fast trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)highly reliable spring contacts for electrical connections; (4)UL recognised file no E63532.

Diagrams

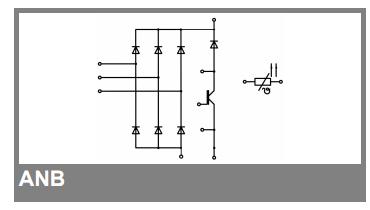

SKIIP28ANB16V2 block diagram
