Product Summary

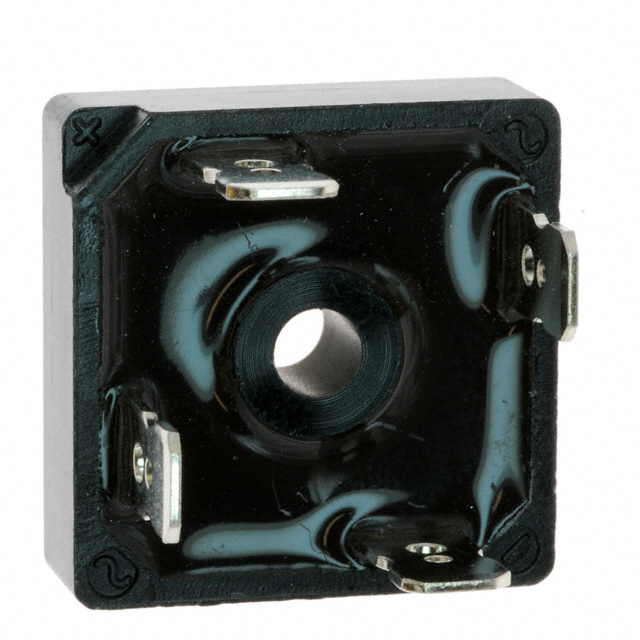

The 36MB160A is a single phase bridge power module. A range of extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation. The 36MB160A is intended for use in general purpose and instrumentation applications.

Parametrics

36MB160A absolute maximum ratings: (1)IO: 35 A; (2)IO@ TC: 55℃; (3)IFSM @50Hz: 475 A; (4)IFSM@ 60Hz: 500 A; (5)I2t @ 50Hz: 1130 A2s; (6)I2t @ 60Hz:1030 A2s; (7)VRRM range: 1400 to 1600 V; (8)TJ: -55 to 150℃.

Features

36MB160A features: (1)Universal, 3 way terminals: push-on, wrap around or solder; (2)High thermal conductivity package, electrically insulated case; (3)Center hole fixing; (4)Excellent power/volume ratio; (5)UL E 62320 approved; (6)Nickel plated terminals solderable as per MIL-STD-202 Method 208; solder: Sn/Pb (60/40); solder temperature: 235-260℃ max. time: 8-10 secs.

Diagrams

36MB160A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
36MB160A
36MB160A

RECTIFIER BRIDGE 1600V 35A D-34A
Data Sheet
0-1: $8.27
1-10: $7.51
10-100: $6.39
100-250: $5.82
250-500: $5.45
500-1000: $5.00
1000-2500: $4.79
2500-5000: $4.66
5000-10000: $4.51
