Product Summary

The PGH20016AM is a 200A, 1600V thyristor module.

Parametrics

PGH20016AM absolute maximum ratings: (1)Average Rectified Output Current, I0(AV), Tc＝90℃: 200A, Tc＝65℃: 200A; (2)Operating Junction Temperature Range, Tjw, when Tj＞125℃, Can not be Biased for Thyristor: －40 to +150 ℃; (3)Storage Temperature Range, Tstg: －40 to +125 ℃; (4)Isolation Voltage, Viso, when Terminal to Base, AC1min.: 2500V.

Features

PGH20016AM features: (1)Peak Reverse Current, IRM Tj=125℃, VRM=VRRM 20 mA; (2)Peak Forward Voltage, VFM, Tj= 25℃，IFM=200A: 1.35 V; (3)Thermal Resistance Rt(h j-c)Junction to Case, Total: 0.10 ℃/W.

Diagrams

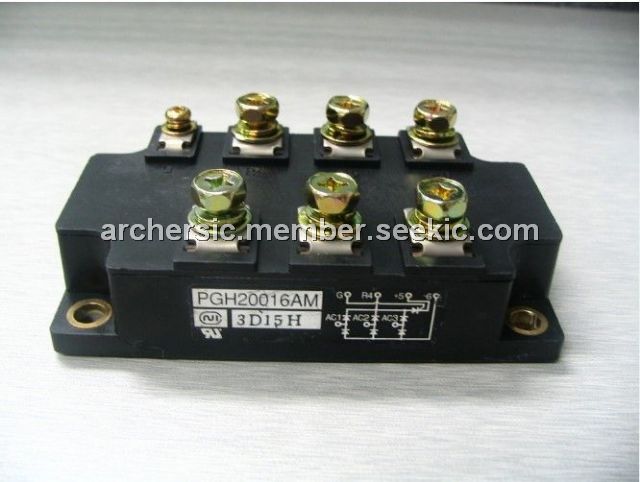

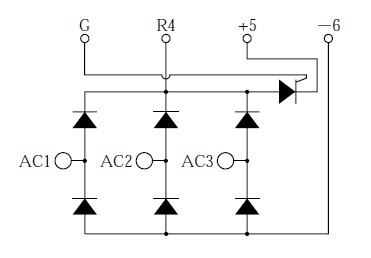

PGH20016AM diagram
