Product Summary

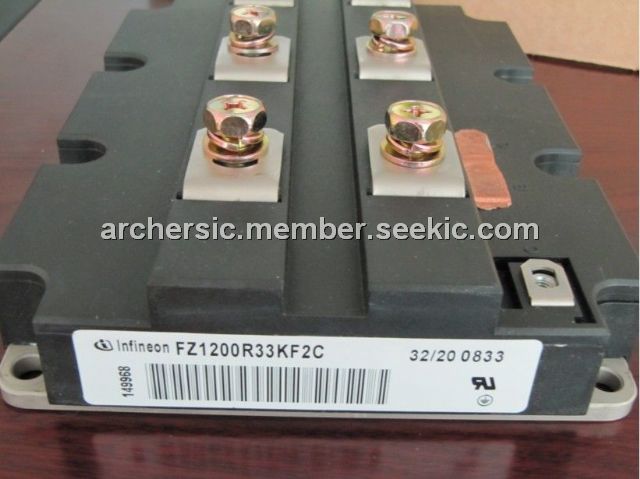

The FZ1200R33KF2C is an IGBT-inverter.

Parametrics

FZ1200R33KF2C absolute maximum ratings: (1)Kollektor emitter sperrspannung, VCES: 3300V; (2)Kollektor daurgleichstrom, ICnom: 1200A; (3)DC collector current, IC: 2000A; (4)Periodischer kollektor spitzenstrom, ICRM: 2400A; (5)Gate emitter spitzenspannung, VGES: +/-20V.

Features

FZ1200R33KF2C features: (1)Isolation prufspannung 6.0kV; (2)Teilentiadungs aussetzespannung partial discharge extinction voltage, 2.6kV; (3)Kollektor emitter gleichsperrsannung DC stability: 1800V; (4)Material modulgrundplatte material of module baseplate AISic.

Diagrams

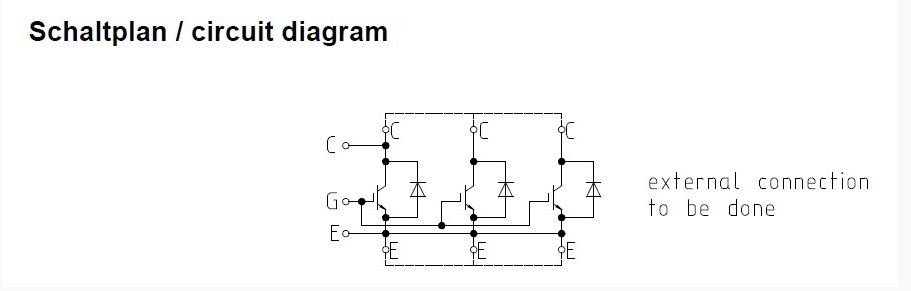

FZ1200R33KF2C block diagram
