Product Summary

The T378N16TOF is a phase control thyristor.

Parametrics

T378N16TOF absolute maximum ratings: (1)Breakover Current IBO Max: 7100 A; (2)Rated Repetitive Off-State Voltage VDRM: 1600 V; (3)Off-State Leakage Current @ VDRM IDRM: 50 mA; (4)Holding Current (Ih Max): 300 mA; (5)Maximum Operating Temperature: + 125℃; (6)Current Rating: 510 A; (7)Minimum Operating Temperature: - 40℃.

Features

T378N16TOF features: (1)Mounting Style: Press Fit; (2)Package / Case: T-4114 ; (3)Circuit Type: PCT; (4)Gate Trigger Voltage (Vgt): 2 V; (5)Gate Trigger Current (Igt): 200 mA.

Diagrams

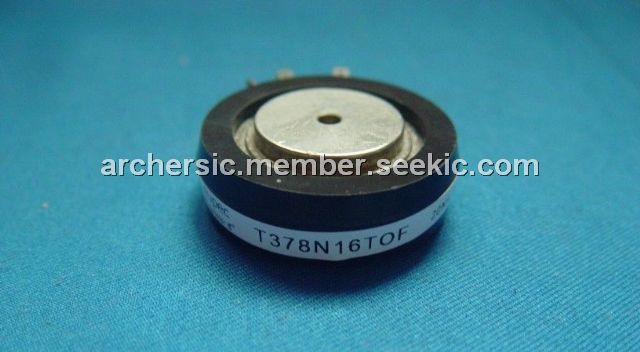

T378N16TOF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T378N16TOF
T378N16TOF

Infineon Technologies

SCR Modules 1.6KV 7.1KA

Data Sheet

Negotiable
