Product Summary
The QM75HA-H is a transistor module. It is suitable for Inverters, Servo drives, UPS, DC motor controllers, NC equipment, Welders.
Parametrics
QM75HA-H absolute maximum ratings: (1)Collector-emitter voltage, VCEX(SUS): 600V; (2)Collector-emitter voltage, VCEX: 600V; (3)Collector-base voltage, VCBO: 600V; (4)Emitter-base voltage, VEBO: 7V; (5)Collector current, IC: 75A; (6)Collector reverse current, -IC: 75A; (7)Collector dissipation, PC: 350A; (8)Base current, IB: 4.5A; (9)Junction temperature, Tj: -40 to 150℃; (10)Storage temperature, Tstg: -40 to 125℃.
Features
QM75HA-H features: (1)IC Collector current: 75A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N), File No. E80271.

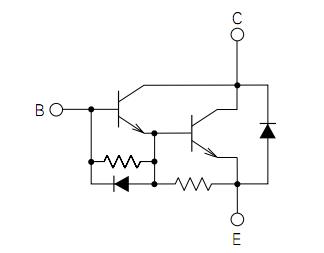

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM75HA-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
