Product Summary

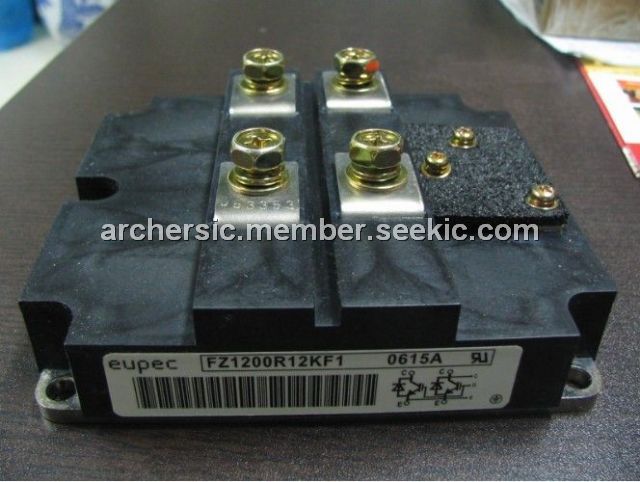

The FZ1200R12KF1 is a transistor.

Parametrics

FZ1200R12KF1 absolute maximum ratings: (1)VCES: 1200V; (2)IC: 1200V; (3)ICRM: 2400A; (4)Ptot: 7800W; (5)VGE: 20V; (6)VEG: 20V; (7)tvj max: 150℃; (8)tvj op: -40 to 150℃; (9)tstg: -40 to 125℃.

Features

FZ1200R12KF1 features: (1)VCEsat: 3.0V; (2)Cies: 180nF; (3)ton: 0.7us.

Diagrams

FZ1200R12KF1 block diagram

FZ1200R12HE4
FZ1200R12HE4
Infineon Technologies
IGBT Modules
Data Sheet
